Data used in electroCalc

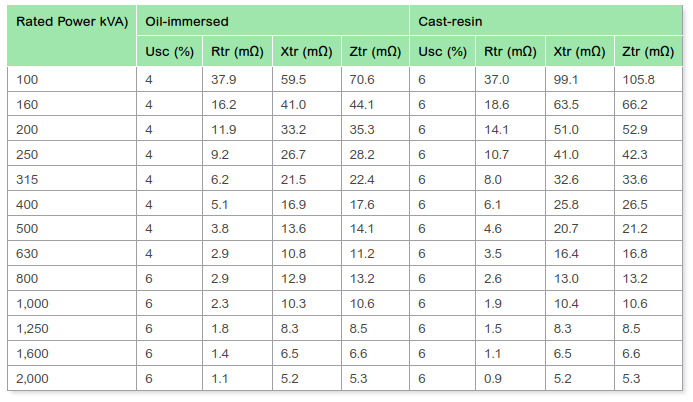

The transformer information is based on Schneider Electric's guide Fig. G37

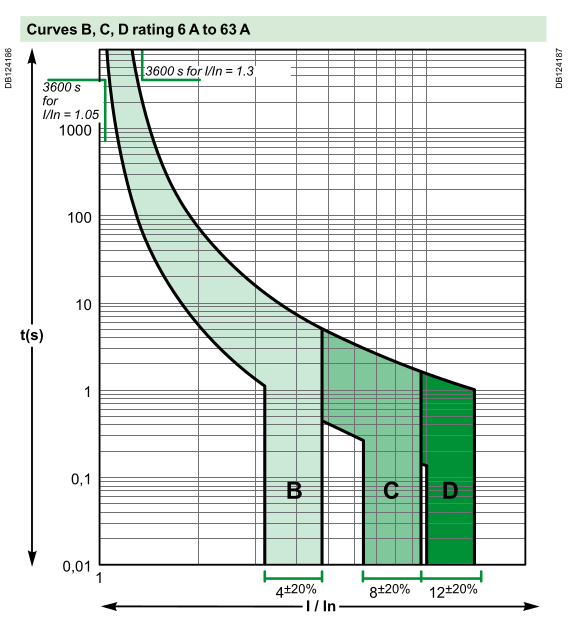

Currently, the data for circuit breakers is based on the Schneider Electric iC60 and C120 series.
Below are the curves the data is based on, you can download the full catalog.

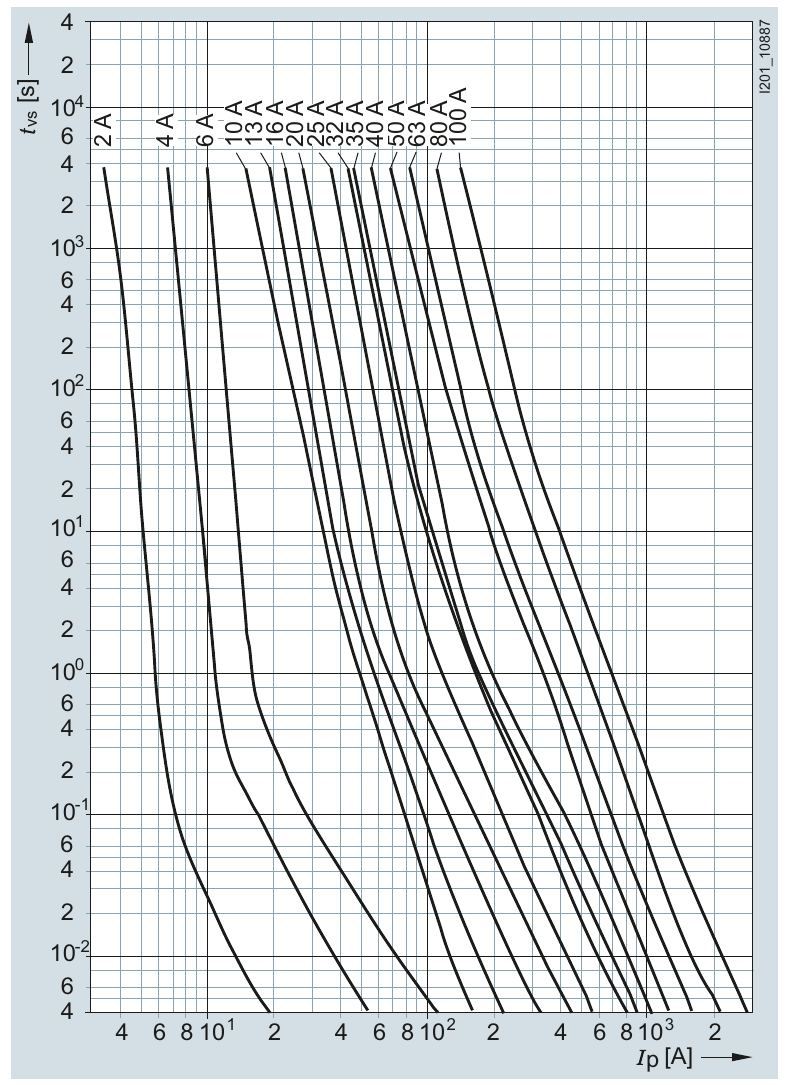

The fuses are based on the Siemens series Neozed gG 5SE2, NH gG 3NA30 – you can download the full catalog.
